MNR60 系列
MNR60 系列

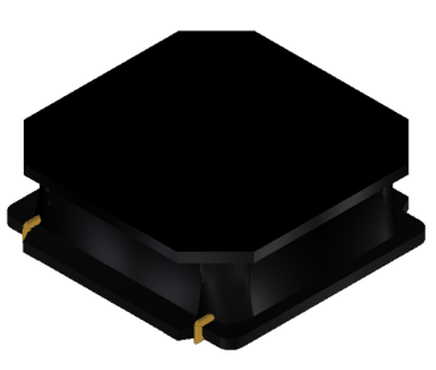

繞線式功率電感
SMD 繞線式(wire wound)功率電感 —— 線圈繞製於鐵氧體磁芯並以環氧樹脂封裝,直流阻抗低、電流承載大,適用於硬碟、車用音響、導航與觸控面板的電源電路。
Wire Wound Power InductorFerrite core
MNR60 系列 · 6.0 × 6.0 mm · 四種厚度
規格 · Specifications
MNR60 系列完整料號表
依厚度分為四個尺寸,電氣特性如下。所有料號皆為 SMD 貼片封裝,載帶包裝 1,000~2,000 pcs/reel。
MNR6010 · 6.0 × 6.0 × 1.0 max mm
| Part No. | L µH | 公差 | DCR Ω | Isat mA | Irms mA | ||
|---|---|---|---|---|---|---|---|
| Typ. | Max. | Typ. | Max. | ||||
| MNR6010T-2R2M | 2.2 | ±20% | 0.155 | 2200 | 1900 | 1900 | 1700 |
| MNR6010T-3R3M | 3.3 | ±20% | 0.205 | 1900 | 1600 | 1600 | 1450 |
| MNR6010T-4R7M | 4.7 | ±20% | 0.277 | 1650 | 1350 | 1500 | 1400 |
| MNR6010T-6R8M | 6.8 | ±20% | 0.450 | 1600 | 1300 | 1220 | 1150 |
| MNR6010T-8R2M | 8.2 | ±20% | 0.390 | 1200 | 1100 | 1210 | 1100 |
| MNR6010T-100M | 10 | ±20% | 0.400 | 1200 | 1000 | 1200 | 1050 |
MNR6012 · 6.0 × 6.0 × 1.2 max mm
| Part No. | L µH | 公差 | DCR Ω | Isat mA | Irms mA | ||
|---|---|---|---|---|---|---|---|
| Typ. | Max. | Typ. | Max. | ||||
| MNR6012T-2R2N | 2.2 | ±30% | 0.090 | 2800 | 2100 | 2100 | 1730 |
| MNR6012T-3R3M | 3.3 | ±20% | 0.120 | 2500 | 1800 | 1900 | 1700 |
| MNR6012T-4R7M | 4.7 | ±20% | 0.125 | 2000 | 1500 | 1850 | 1550 |
| MNR6012T-5R6M | 5.6 | ±20% | 0.145 | 1850 | 1500 | 1750 | 1400 |
| MNR6012T-6R8M | 6.8 | ±20% | 0.165 | 1600 | 1300 | 1350 | 1180 |
| MNR6012T-100M | 10 | ±20% | 0.235 | 1300 | 1000 | 1250 | 1000 |
| MNR6012T-150M | 15 | ±20% | 0.330 | 1100 | 800 | 1000 | 790 |
| MNR6012T-220M | 22 | ±20% | 0.465 | 900 | 760 | 750 | 630 |
| MNR6012T-330M | 33 | ±20% | 0.700 | 750 | 590 | 670 | 530 |
| MNR6012T-470M | 47 | ±20% | 1.050 | 610 | 520 | 540 | 460 |
| MNR6012T-680M | 68 | ±20% | 1.350 | 530 | 440 | 450 | 410 |
| MNR6012T-101M | 100 | ±20% | 2.180 | 450 | 350 | 380 | 320 |
MNR6020 · 6.0 × 6.0 × 2.0 ± 0.2 mm
| Part No. | L µH | 公差 | DCR Ω | Isat mA | Irms mA | ||
|---|---|---|---|---|---|---|---|
| Typ. | Max. | Typ. | Max. | ||||
| MNR6020T-R90N | 0.9 | ±30% | 0.018 | 6300 | 5000 | 4200 | 4000 |
| MNR6020T-1R0N | 1.0 | ±30% | 0.019 | 6200 | 4900 | 4100 | 3900 |
| MNR6020T-1R5N | 1.5 | ±30% | 0.026 | 5000 | 4000 | 3600 | 3200 |
| MNR6020T-2R2N | 2.2 | ±30% | 0.034 | 4200 | 3500 | 3200 | 2900 |
| MNR6020T-3R3N | 3.3 | ±30% | 0.040 | 3200 | 3000 | 2700 | 2400 |
| MNR6020T-4R7N | 4.7 | ±30% | 0.058 | 2500 | 2300 | 2200 | 2000 |
| MNR6020T-6R8M | 6.8 | ±20% | 0.085 | 2200 | 2000 | 1800 | 1650 |
| MNR6020T-100M | 10 | ±20% | 0.125 | 2000 | 1800 | 1600 | 1450 |
| MNR6020T-150M | 15 | ±20% | 0.190 | 1300 | 1100 | 1300 | 1100 |
| MNR6020T-220M | 22 | ±20% | 0.260 | 1100 | 900 | 1100 | 900 |
MNR6045 · 6.0 × 6.0 × 4.6 ± 0.2 mm
| Part No. | L µH | 公差 | DCR Ω | Isat mA | Irms mA | ||
|---|---|---|---|---|---|---|---|
| Typ. | Max. | Typ. | Max. | ||||
| MNR6045T-1R0N | 1.0 | ±30% | 0.011 | 9850 | 9700 | 5140 | 5000 |
| MNR6045T-1R5N | 1.5 | ±30% | 0.012 | 8800 | 8650 | 4950 | 4700 |
| MNR6045T-2R2N | 2.2 | ±30% | 0.014 | 6750 | 6600 | 4600 | 4400 |
| MNR6045T-3R3M | 3.3 | ±20% | 0.024 | 5900 | 5700 | 3700 | 3500 |
| MNR6045T-4R7M | 4.7 | ±20% | 0.031 | 4970 | 4800 | 3300 | 3100 |
| MNR6045T-6R8M | 6.8 | ±20% | 0.035 | 3900 | 3800 | 3000 | 2900 |
| MNR6045T-100M | 10 | ±20% | 0.048 | 3200 | 3100 | 2450 | 2300 |
| MNR6045T-150M | 15 | ±20% | 0.068 | 2500 | 2400 | 2050 | 1950 |
| MNR6045T-220M | 22 | ±20% | 0.089 | 2050 | 1850 | 1800 | 1700 |
| MNR6045T-330M | 33 | ±20% | 0.137 | 1650 | 1550 | 1450 | 1350 |
| MNR6045T-470M | 47 | ±20% | 0.200 | 1400 | 1350 | 1200 | 1100 |
| MNR6045T-680M | 68 | ±20% | 0.289 | 1200 | 1100 | 1000 | 950 |
| MNR6045T-820M | 82 | ±20% | 0.341 | 1050 | 1050 | 900 | 900 |
| MNR6045T-101M | 100 | ±20% | 0.433 | 950 | 950 | 800 | 800 |
| MNR6045T-121M | 120 | ±20% | 0.484 | 850 | 850 | 770 | 770 |
| MNR6045T-151M | 150 | ±20% | 0.580 | 800 | 800 | 700 | 700 |
| MNR6045T-221M | 220 | ±20% | 0.834 | 700 | 700 | 590 | 590 |
| MNR6045T-331M | 330 | ±20% | 1.270 | 570 | 570 | 570 | 570 |
| MNR6045T-471M | 470 | ±20% | 1.800 | 500 | 500 | 420 | 420 |
| MNR6045T-681M | 680 | ±20% | 2.500 | 420 | 420 | 330 | 330 |
| MNR6045T-102M | 1000 | ±20% | 4.500 | 300 | 300 | 300 | 300 |
| MNR6045T-152M | 1500 | ±20% | 6.500 | 240 | 240 | 210 | 210 |
電氣特性以規格書為準。Isat 為電感值下降 30% 時之直流電流,Irms 為溫升 40 °C 時之電流。實際應用請索取樣品驗證。
結構 · Construction
繞線式結構,低阻抗、大電流
繞線式磁芯結構
線圈繞製於鐵氧體磁芯,磁路完整,電感值穩定。
低直流阻抗
粗線徑繞製,DCR 低,導通損耗小、發熱低。
大電流承載
飽和電流最高可達 6.3 A,適合大電流 DC-DC 電源級。
四種厚度可選
1.0 / 1.2 / 2.0 / 4.6 mm,同一佔板面積下依高度限制選型。
